Print & Finishing Solutions sells and supports the advanced and reliable computer-to-plate (CTP) solutions from Screen & Mitsubishi Imaging directly and through our network of Dealer-Partners. Please contact our professional equipment consultants today for product selection assistance, application review, and cost justification / ROI analysis.
SCREEN Graphic Solutions of Japan introduced the PlateRite series in 1995 and has since become one of the most popular and widely used CTP in today’s printing industry around the world. More than 20,000 SCREEN CTP units have been manufactured, based on the philosophy of making reliability and quality the number one priority.
Click to view larger image |
|
PlateRite 4600S
| Plate size, max: |
32.6 x 25.9" (830 x 660mm) |
| Plate size, min: |
10.7 x 11" (270 x 278mm) |
| Exposure size, max: |
32.6 x 25.3" (830 x 644mm) |
| Plate: |
Thermal aluminum plate |
| Plate thickness: |
5.9 to 11.8 mil (0.15 to .3mm) |
| Resolutions: |
1,200 / 2,400 / 2,438 / 2,540 dpi |
| Repeatability: |
+/- 5 microns |
| Productivity: |
21 plates / hr |
| Imaging source: |
32-channel laser diode |
| Imaging system: |
External drum |
| Electrical: |
AC 200-240V, 1PH, (20A service) |
| Machine Dimensions (Wx Dx H): |
78.2 x 51.8 x 51.2" x 1,826 lbs. |
SCREEN’s advanced 4-page thermal CtP systems with innovative optical technology deliver outstanding reliability. PlateRite 4600 series CtP systems enable consistent production of high-quality printing plates. The exposure heads used in the PlateRite 4600 series have been enhanced with the addition of new fiber laser diodes. These diodes enable the reproduction of sharper halftone dots, significantly improving print quality.
|
|
MSRP: Request Quote
Request a Quote
Shipping
Financing
Pricing
About SCREEN
|
 Consultant |
|
|
|
|
Click to view larger image |
|

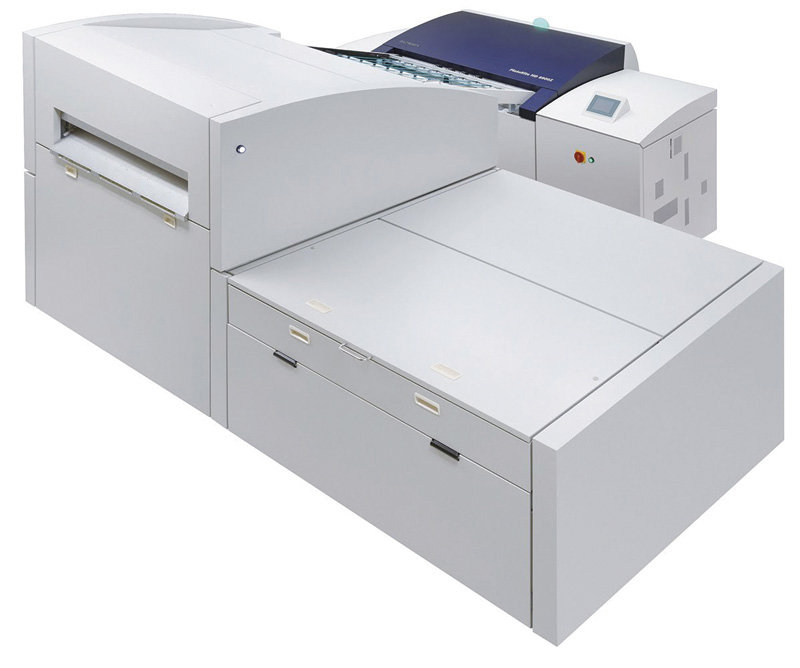

PlateRite 8600NII
| Plate size, max: |
45.6 x 37" (1,160 x 940 mm) |
| Plate size, min: |
12 x 14.6" (304 x 370mm) |
| Exposure size, max: |
45.6 x 36.3" (1,150 x 924mm) |
| Plate: |
Thermal aluminum plate |
| Plate thickness: |
6 to 15.7 mil (0.15 to .4 mm) |
| Resolutions: |
1,200 / 2,400 / 2,438 / 2,540 dpi |
| Repeatability: |
+/- 5 microns |
| Productivity: |
14 plates / hr (8600NII-E) |
|
24 plates / hr (8600NII-S) |
|
32 plates / hr (8600NII-Z) |
| Imaging source: |
32-channel laser diode (8600NII-E) |
|
64-channel laser diode (8600NII-S) |
| |
96-channel laser diode (8600NII-Z) |
| Imaging system: |
External drum |
| Electrical: |
AC 200-240V, 1PH, (40A service) |
| Machine Dimensions (Wx Dx H): |
99.7 x 58.9 x 50.4" x 2,772 lbs. |
SCREEN’s advanced 8-page thermal CtP systems with innovative optical technology deliver outstanding reliability. PlateRite 8600NII series CtP systems enable consistent production of high-quality printing plates. The exposure heads used in the PlateRite 8600NII series have been enhanced with the addition of new fiber laser diodes. These diodes enable the reproduction of sharper halftone dots, significantly improving print quality.
|
|
MSRP: Request Quote
Request a Quote
Shipping
Financing
Pricing
About SCREEN
|
Consultant |
|
|
|
|
Mitsubishi Imaging is an industry leader in polyester and paper-based silver halide printing plates. With a long history in the CTP market, today’s solutions offer ease of use with chemistry-free and processless plates.
Click to view larger image |
|

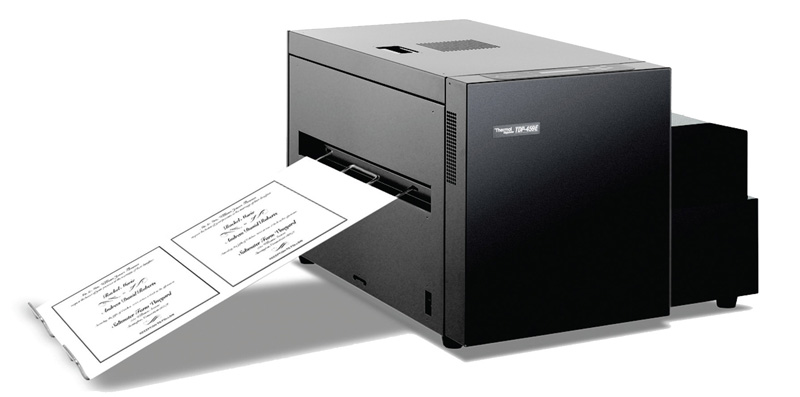

TDP-459
| Plate size, max: |
18.07 x 20.86" (459 x 530mm) |
| Plate size, min: |
10 x 5.6" (254 x 150mm) |
| Exposure size, max: |
14.2 x 20.5" (360 x 52mm) |
| Plate: |
Thermal TDP-R175 |
| Plate thickness: |
8 mil |
| Resolutions: |
1,200 dpi |
| Productivity: |
75 plates / hr |
| Imaging source: |
32-channel laser diode |
| Imaging system: |
Thermal in-line head |
| Electrical: |
AC 100 or 220V (15A service) |
| Machine Dimensions (WxDxH): |
20.2 x 26 x 15" x 121 lbs. |
The Mitsubishis TDP is a fully-automated 2-up CTP platesetter that produces true chemical-free and processless thermal, paper-based CTP plates. Production is rated up to 75 plates per hour with resolutions up to 1,200 dpi.
|
|
