Since 1919, ITOTEC has manufactured quality cutting machinery from their headquarters in Japan and has been considered the cutter of choice for commercial printers and binderies worldwide due to their advanced design, features, productivity, and proven reputation for reliability.
Print & Finishing Solutions imports, sells, and supports ITOTEC paper cutters directly and through our network of Dealer-Partners. Please contact our professional equipment consultants today for product selection assistance, application review, and cost justification / ROI analysis.

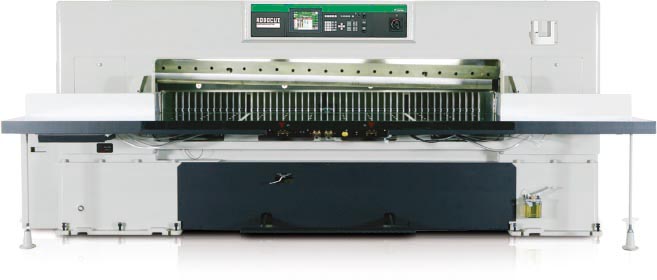

Click to view larger image |
|
SC-115Z
| Cutting width: |
45.98" |
| Cutting depth: |
45.70" |
| Clamp opening: |
6.49" |
| Min. cutting size: (w/FCP): |
3.46" |
| Min. cutting size: (wo/FCP): |
3.07" |
| Knife stroke: |
50 cycles/min. (eRC: 42 cycles/min.) |
| Max. backgauge speed: |
11.81"/sec. (eRC: 8.85"/sec.) |
| Max. clamp pressure: |
45kN（eRC：40kN） |
| Display: |
10" (eRC:8.4") TFT color LCD touch panel |
| Memory: |
500 courses 25000 pages (50 pages/course) |
| Operation mode: |
Memory mode, manual mode, semi-automatic mode, fully automatic mode |
| Knife & clamp driving method: |
Double pull drive |
| Electrical: |
AC 200-220V, 3PH, 60Hz, (30A service) |
| Machine Dimensions (LxWxH): |
102.44" x 109.40" x 102.44" |
|
|
| Knife & clamp driving method: |
Double pull drive |
|
|
MSRP: Call
Request a Quote
Shipping
Price Guarantee
Financing
Pricing
About ITOTEC |
Click to view larger image |
|
eRC-100DX
| Cutting width: |
40.5" (103cm) |
| Cutting depth: |
39" (100cm) |
| Clamp opening: |
6.5" (16.5cm) |
| Min. cutting size: (w/FCP): |
3.3" (8.5cm) |
| Min. cutting size: (wo/FCP): |
1.1" (2.7cm) |
| Knife stroke: |
42x/min |
| Max. backgauge speed: |
8.8" (225mm)/sec |
| Max. clamp pressure: |
8,992 lbs. (40kN) |
| Display: |
8.4" TFT color LCD touch panel |
| Memory: |
500 jobs & 25,000 cuts |
| Operation mode: |
Manual, program, semi & full-auto |
| Knife & clamp driving method: |
Double arm pull |
| Electrical: |
AC 200-220V, 3PH, 60Hz, (30A service) |
| Machine Dimensions (LxWxH): |
96 x 104.8 x 64.5" x 8,157 lbs. |
|
|
MSRP: $72,500
Request a Quote
Shipping
Price Guarantee
Financing
Pricing
About ITOTEC |
Click to view larger image |
|
eRC-115DX
| Cutting width: |
46" (116.8cm) |
| Cutting depth: |
45 5/8" (116.0cm) |
| Clamp opening: |
6.5" (16.5cm) |
| Min. cutting size: (w/FCP): |
3.3" (8.5cm) |
| Min. cutting size: (wo/FCP): |
1.1" (2.7cm) |
| Knife stroke: |
42x/min |
| Max. backgauge speed: |
8.8" (225mm)/sec |
| Max. clamp pressure: |
8,992 lbs. (40kN) |
| Display: |
8.4" TFT color LCD touch panel |
| Memory: |
500 jobs & 25,000 cuts |
| Operation mode: |
Manual, program, semi & full-auto |
| Knife & clamp driving method: |
Double arm pull |
| Electrical: |
AC 200-220V, 3PH, 60Hz, (30A service) |
| Machine Dimensions (LxWxH): |
102.8 x 109.4 x 65.3" x 9,039 lbs. |
|
|
MSRP: $75,500
Request a Quote
Shipping
Price Guarantee
Financing
Pricing
About ITOTEC |
Click to view larger image |
|
eRC-137DX
| Cutting width: |
54" (137cm) |
| Cutting depth: |
52" (132cm) |
| Clamp opening: |
6.5" (16.5cm) |
| Min. cutting size: (w/FCP): |
4.1" (10.5cm) |
| Min. cutting size: (wo/FCP): |
1.1" (2.7cm) |
| Knife stroke: |
42x/min |
| Max. backgauge speed: |
8.8" (225mm)/sec |
| Max. clamp pressure: |
8,992 lbs. (40kN) |
| Display: |
8.4" TFT color LCD touch panel |
| Memory: |
500 jobs & 25,000 cuts |
| Operation mode: |
Manual, program, semi & full-auto |
| Knife & clamp driving method: |
Double arm pull |
| Electrical: |
AC 200-220V, 3PH, 60Hz, (30A service) |
| Machine Dimensions (LxWxH): |
108.5 x 118.5 x 64.5" x 9,921 lbs. |
|
|
MSRP: $86,500
Request a Quote
Shipping
Price Guarantee
Financing
Pricing
About ITOTEC |
 |
| |
|
eRC-160DX Cutting width: 63" (160cm)
eRC-170DX Cutting width: 66.9" (170cm)
eRC-200DX Cutting width: 78.7" (200cm)
eRC-250DX Cutting width: 98.4" (250cm)
Please contact your PFS sales consultant for additional information pertaining to models eRC-160DX
and larger. |
|
|
|
