Sheet Size: 5.040" x 5.830"" up to 21.965" x 33.460"
Stock Weights: 10lb. bond to 90lb. Cover
Folds Patterns: 13 fold patterns; 6 parallel & cross fold section
Production Speed: Up to 42,000 sheets/hr
Feeder: Air Feed / Pile Feed (29.1" capacity)
Knife Fold: Parallel Unit
Impact Creasing: N/A
Impact Perforation: N/A
Rotary Perforation & Scoring
Electrical: 200V 3 phase 60Hz 12.6A
Folder Dimensions (LxWxH): 114.2 x 39.6 x 65.5" x 2,405 lbs.
Conveyer Dimensions (LxWxH): 52.0 x 23.7 x 44.5" x 110 lbs.

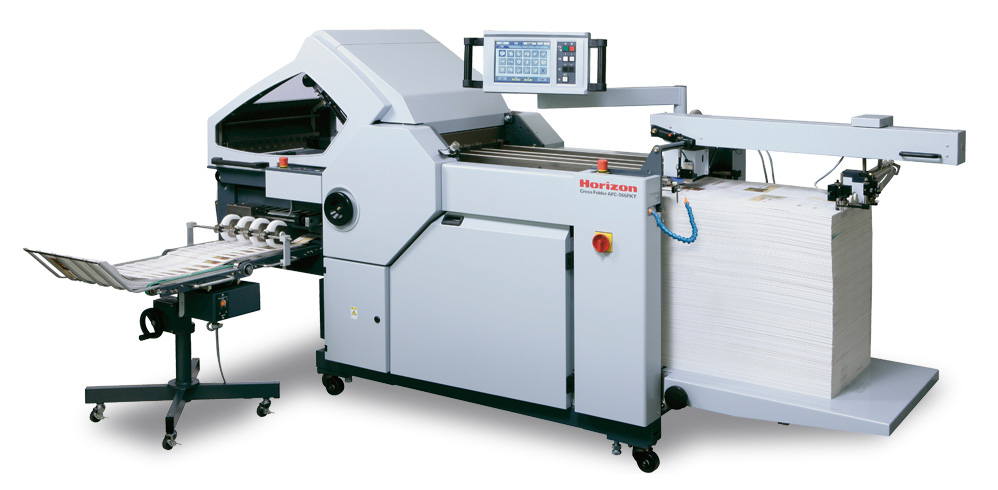

The Horizon AFC 566FG Vaccum-feed Folder features fully automated set-up, including gap settings, 6 parallel fold plates, and cross-fold section for a wide variety of folding applications. Stores up to 200 different jobs in memory with automated make-ready in 14 seconds. This folder has been designed to serve the graphic arts and digital print markets with ultra-quick changesovers and the ability to handle sensitive digitally-imaged sheets without marking, enabled by specially formulated comination roller and scoring systems. It is equipped with 6 fold plates and can run up to 42,000 sheets/hr.
