Horizon RD Series of Rotary Die-Cutters
Applications
- Perfect for short-run digital and offset applications
- Die-cut, kiss-cut, crease, perforate, slit, hole-punch, and round corner in a single process
Features
- Easy-to-use touchscreen: This system features easy change-over and simple operation
- Sheets are registered by vacuum belt and perfectly registered by servo driven gripper rollers.
- Optional mark sensor perfectly registers sheet-to-sheet digital applications
- “Repeat register” function for plate cost saving with short-run multiple-up applications
- Configure your system with available separator and stacking options
- Bearer to bearer cylinder design ensures precise and consistent pressure
- Dual / second magnetic cylinder design is available with model RD-4055DM for applications
- Dies are readily available from reputable industry suppliers
Click to view larger image |
|

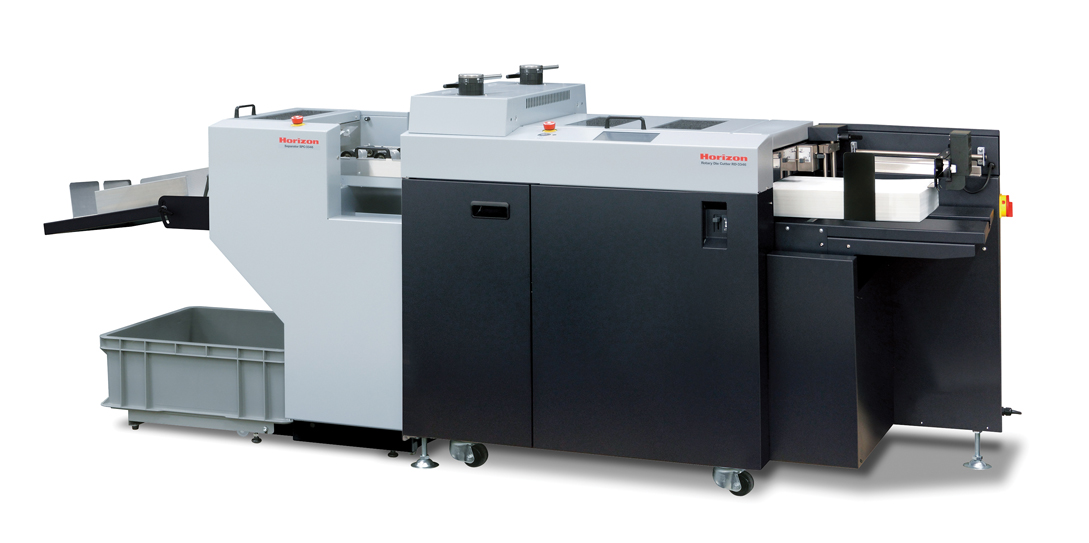

RD-3346
| Sheet size, max: |
13 x 21.65" (330.2 x 550mm) |
| Sheet size, min: |
6.69 x 10.83" (170 x 275mm) |
| Cut size, max: |
12.36 x 17.32" (314 x 440mm) |
| Cut size, min: |
Depending on die shape |
| Sheet thickness: |
127.9 to 270 gsm |
| Die cutting thickness: |
0.011" (0.3mm) |
| Creasing thickness: |
N/A |
| Die size, max: |
12.99 x 18.11" (330 x 460mm) |
| Die size, min: |
6.3 x 2.76" (160 x 70mm) |
| Upper cutting blade height: |
0.0236" (0.6mm) |
| Lower / 2nd cylinder: |
Solid anvil |
| Feeder stack height: |
5.9" (150mm) |
| Feeder: |
Vacuum belt w/registration |
| Double sheet detection: |
Ultrasonic and mechanical |
| Production speed, max: |
5,000 cycles per hour |
| Electrical: |
AC 200-240V, 1PH, (40A service) |
| Air source: |
Reference tech docs & literature |
| Dimensions (Wx Dx H): |
Reference tech docs & literature |
The RD-3346 is perfect for short-run digital and offset applications such as tags and business cards. Die-cut and kiss-cut various flexible substrates up to 0.013” thickness and at production speeds up to 5,000 cycles per hour. Feeding, die-cutting and separating is achieved in a single pass.
|
|
